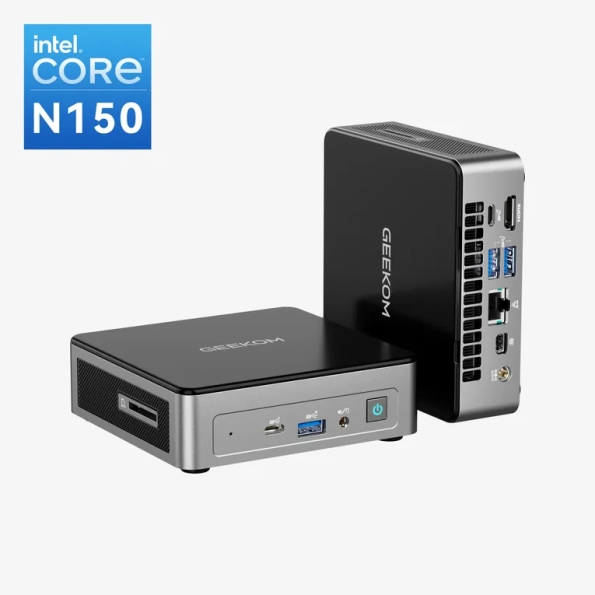

【Pre-sale】GEEKOM Mini Air12 Mini PC 12th Gen Intel Alder Lake
Original price was: $778.00.$349.00Current price is: $349.00.
- 12th Gen Intel Alder Lake N150 Processor.
- Single-channel DDR5-4800 SODIMM, up to 16GB.
- M.2 2280 PCIe Gen 3 x 4 SSD, up to 1TB.
- Stable and speedy connectivity with WiFi 6 and Bluetooth 5.2.
- Supports 3 displays, up to 8K.
- Windows 11 Pro pre-installed.
- Lowest price in 30 days. Only 100 pieces left. Other discounts cannot be used.

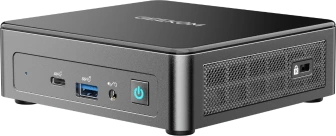

GEEKOM Air12 Mini PC
Might lies beyond the slight.
Intel® Processor N150
4 Cores, 4 Threads, up to 3.60 GHz
Wi-Fi 6
Bluetooth 5.2
Windows 11
Copilot AI

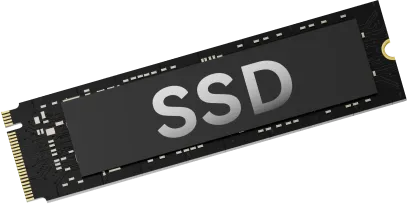

M.2 2280 PCIe 3.0 ×4 SSD
Up to 2 TB

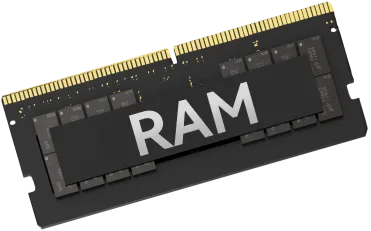

DDR5 4800 MT/s
Single channel, up to 16 GB
Dual Copper Tube Cooling Fan
1000 MHz
Intel® Graphics 24 EUs

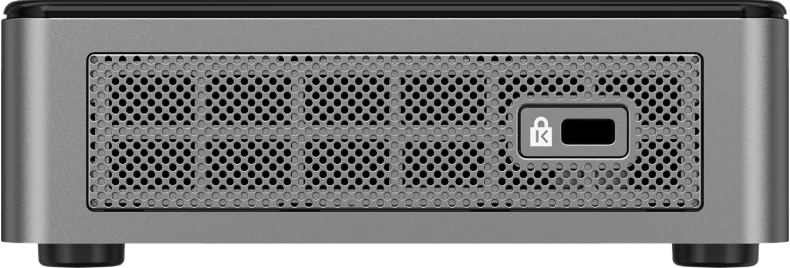

Kensington Lock

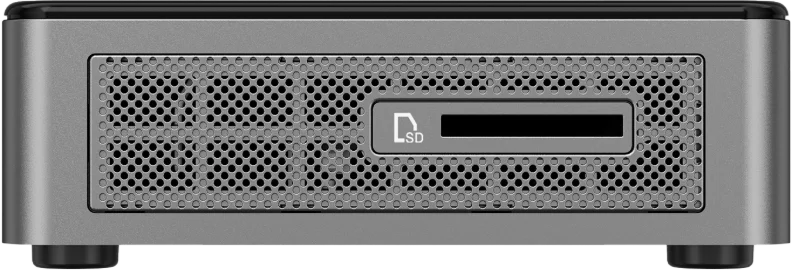

SD Card Reader
SD Card Reader
VESA Compatible
Dual Copper Tube Cooling Fan
Triple 4K Display Support
Eco-Friendly Energy Star Certified
Type-C ×2
VESA Compatible

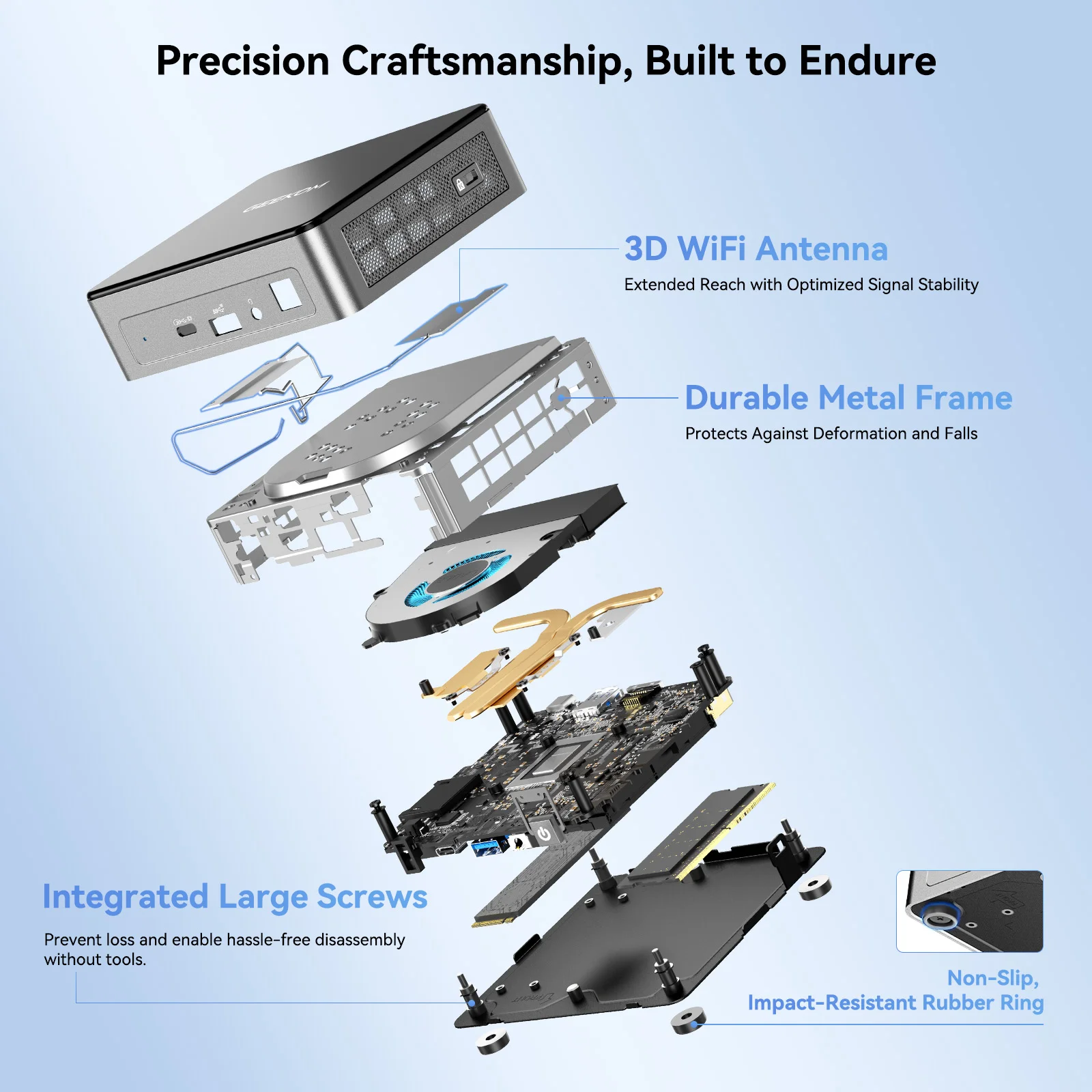

Every Detail, Engineered for Excellence
Materials
Compliance
Design
Antenna
Compatibility

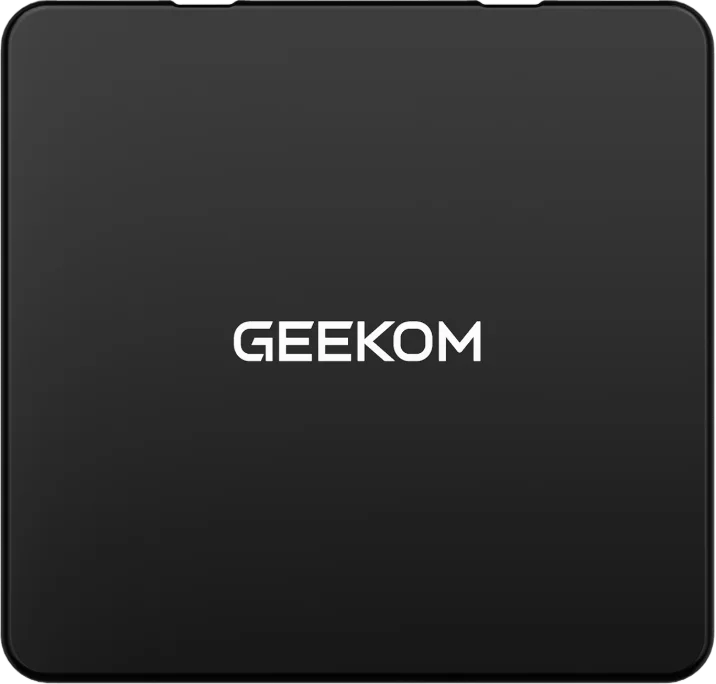

Upper Cover + Outer Frame: PC+ABS Composite
Offers superior hardness and structural stability, resisting deformation under pressure or heat.
Painted finish with UV-cured transparent resin coating
Provides a scratch-resistant, high-gloss finish, combining aesthetics with long-term durability.
Inner Frame + Base Cover:
Full Metal
Withstand 200kg of force without deformation, protecting internal components from accidental drops or crushing impacts.

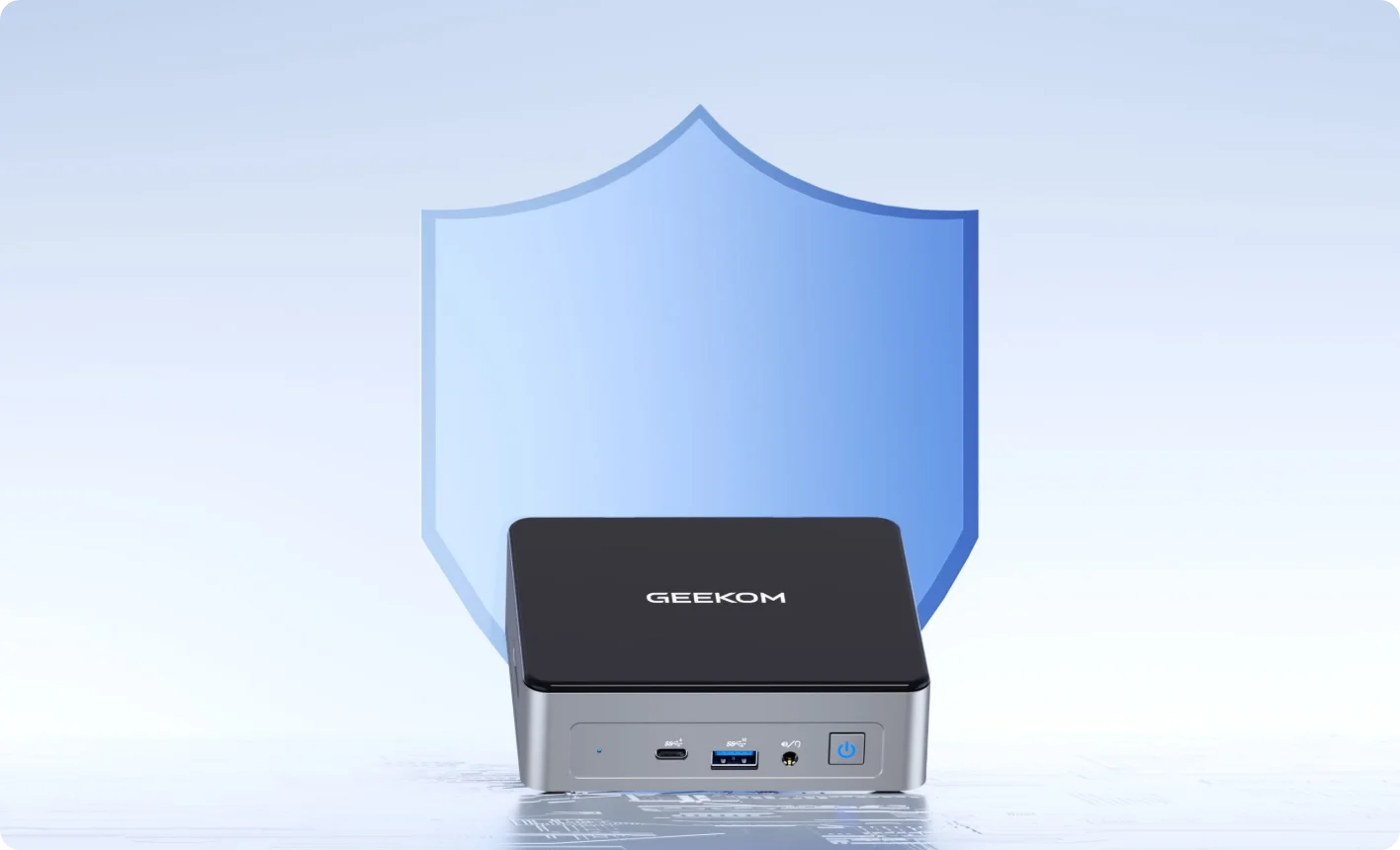

EMC Certification:
Guarantees that the Mini PC does not interfere with other electronics during normal use, while also maintaining stable performance against external electromagnetic interference.

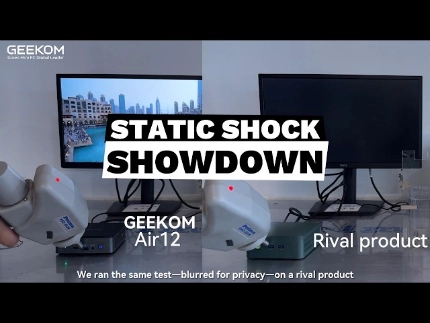

ESD Protection:
Ensures that the device continues to function properly even when exposed to electrostatic discharge.
Unified Captive Screws:
Designed to prevent loss and allow for tool-free upgrades and maintenance.
Mold-Injected Base Footpads:
Full Metal Ensures consistent size and stable placement on any surface with anti-skid material.
Provides wider signal coverage and better interference resistance.
Behind Monitor
Under Desk

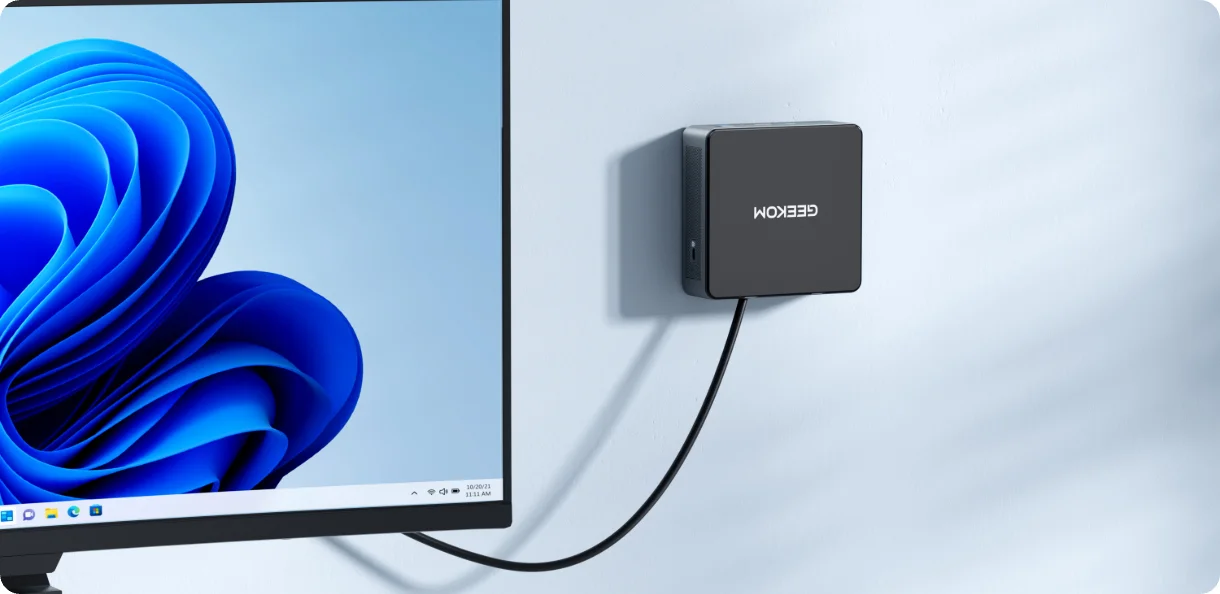

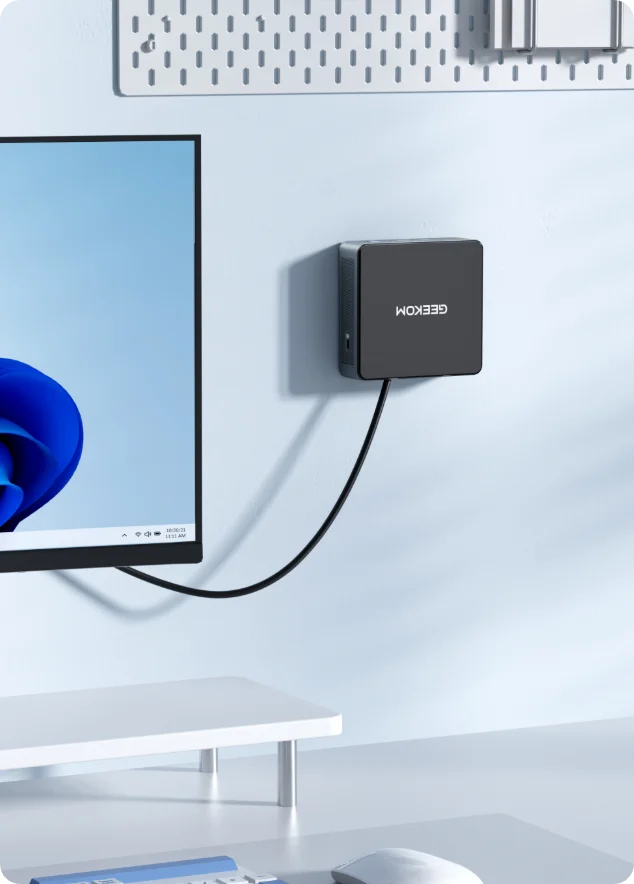

On the Wall
Mount your GEEKOM Air12 Mini PC on any VESA-compliant surface for a tidy and efficient workspace. Enjoy the freedom to position your device wherever it best suits your needs.
Dual Copper Pipes: Double the Cooling Power
Key Technical Highlights:
1. Dual Copper Tubes: Accelerate heat dissipation.
2. Full-Copper Heatsink: Durable, corrosion-resistant cooling.
3. CPU-Specific Cooling: Prevents overheating in critical components.
4. Large Heat Pipes: Greater airflow for rapid rapid heat transfer.

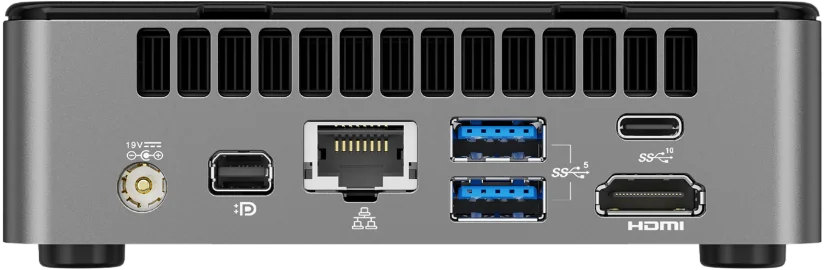

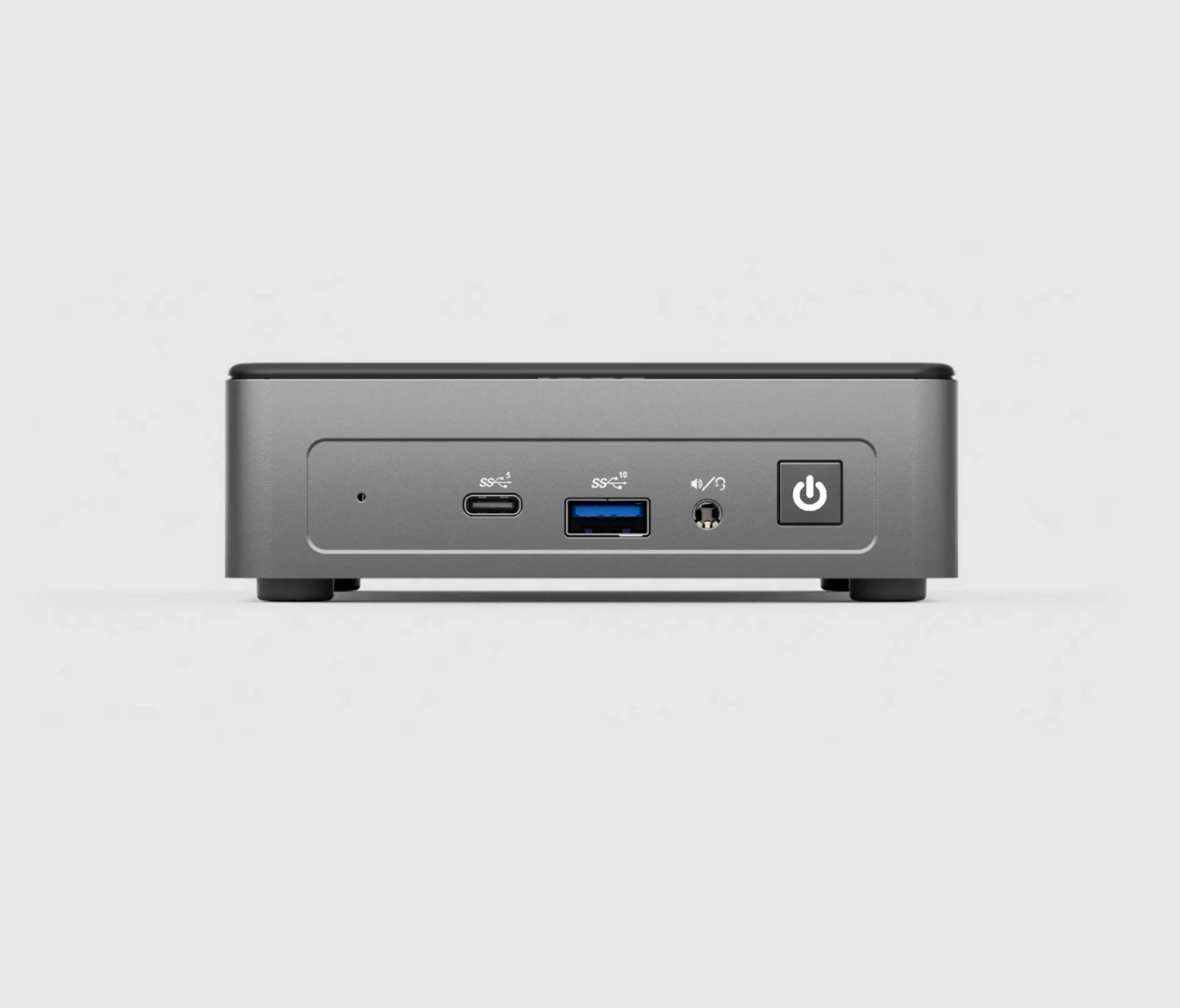

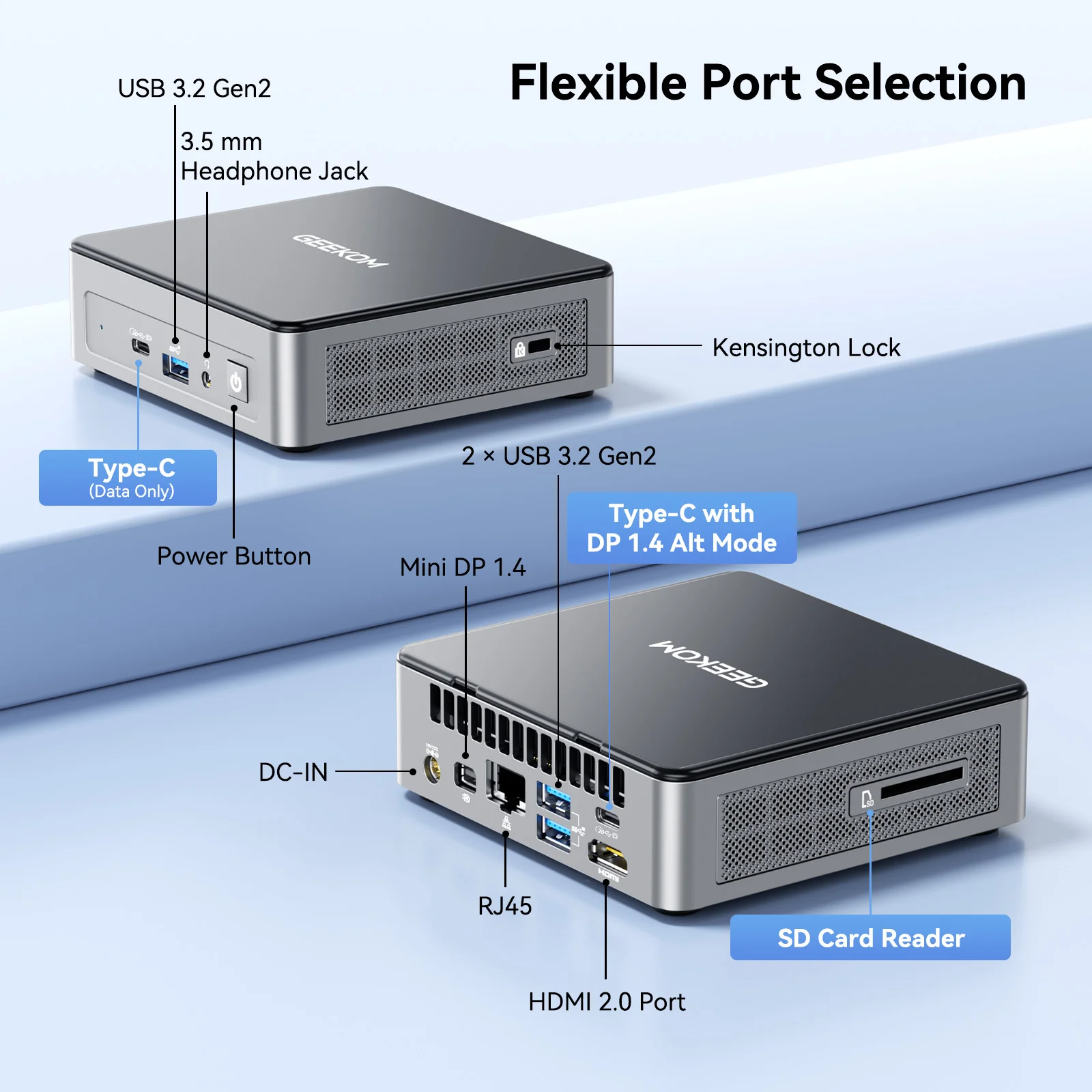

Versatile Ports for Every Need
Designed for flexibility, the GEEKOM Air12 Mini PC features an SD Card Reader, dual Type-C ports for data and display output, and a comprehensive set of ports like USB 3.2 Gen 2 and HDMI 2.0 to meet all your connectivity demands.
112 mm
34.2 mm

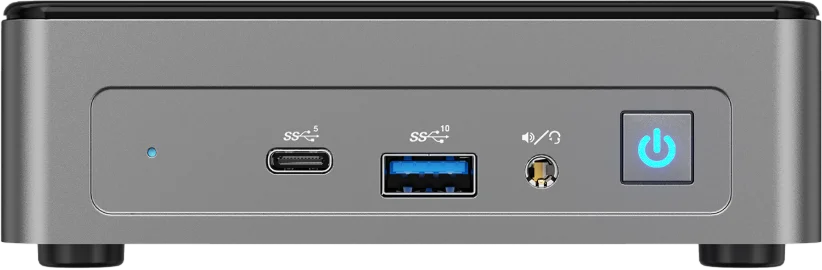

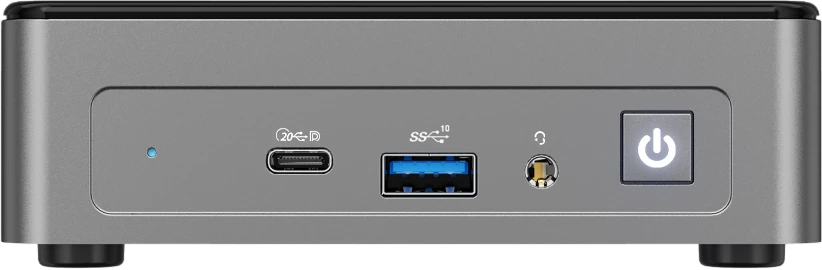

1 × Type-C(Data Only)
1 × USB 3.2 Gen 2
1 × 3.5 mm Headphone Jack
1 × Power Button
1 × SD Card Reader
1 × DC in
1 × Mini DP 1.4
1 × RJ45
1 × USB 3.2 Gen 2
1 × HDMI 2.0
1 × Type-C with DP 1.4 Alt Mode
1 × Kensington Lock

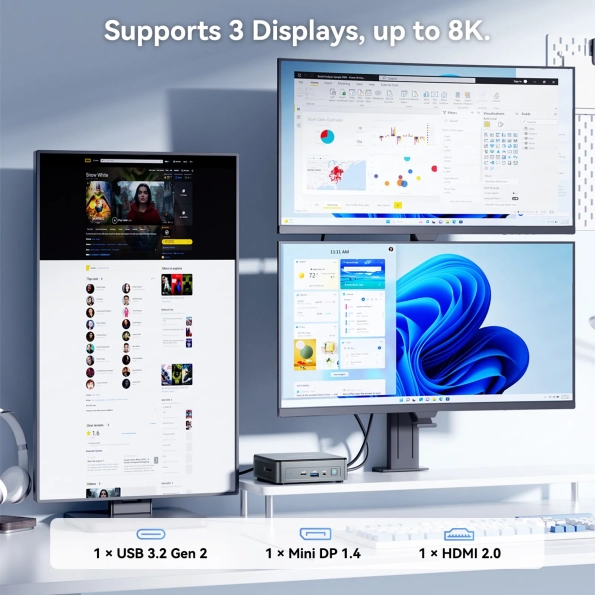

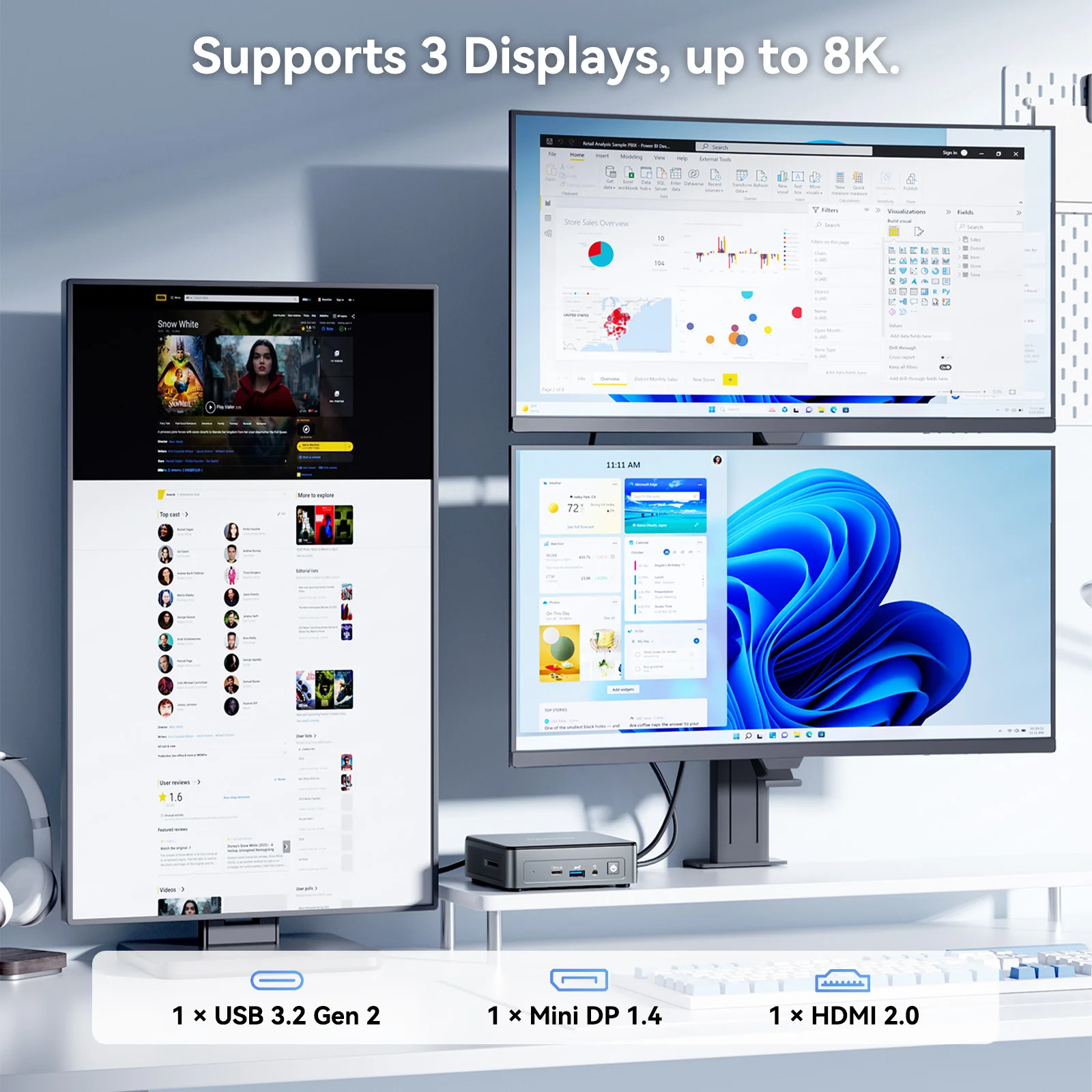

Triple Display Support, Up to 8K Resolution
The GEEKOM Air12 Mini PC offers support for triple 4K displays and up to 8K resolution, ensuring you enjoy superior visuals for work, entertainment, and creativity.
1 × USB 3.2 Gen 2
(8K @30Hz)
1 × Mini DP 1.4
(8K @30Hz)
1 × HDMI 2.0
(4K @60Hz)
One Device, Infinite Applications
Home Security Monitoring
Entertainment & Media Center
Collaborative Meetings
Efficient Multi-Tasking
Remote Learning & Training
Data Backup & Sync
Smart Retail Solutions
Industrial Control Systems
Built to Last. Proven by 339+ Tests
The GEEKOM Air12 Mini PC is tested through every stage of development, including rigorous stress, mechanical, environmental, and surface durability testing. With 339+ functional and reliability tests, it's engineered for long-term stability, safety, and performance in real-world use.
Environmental Testing
Mechanical Testing
Surface Durability Testing
Lifespan Testing

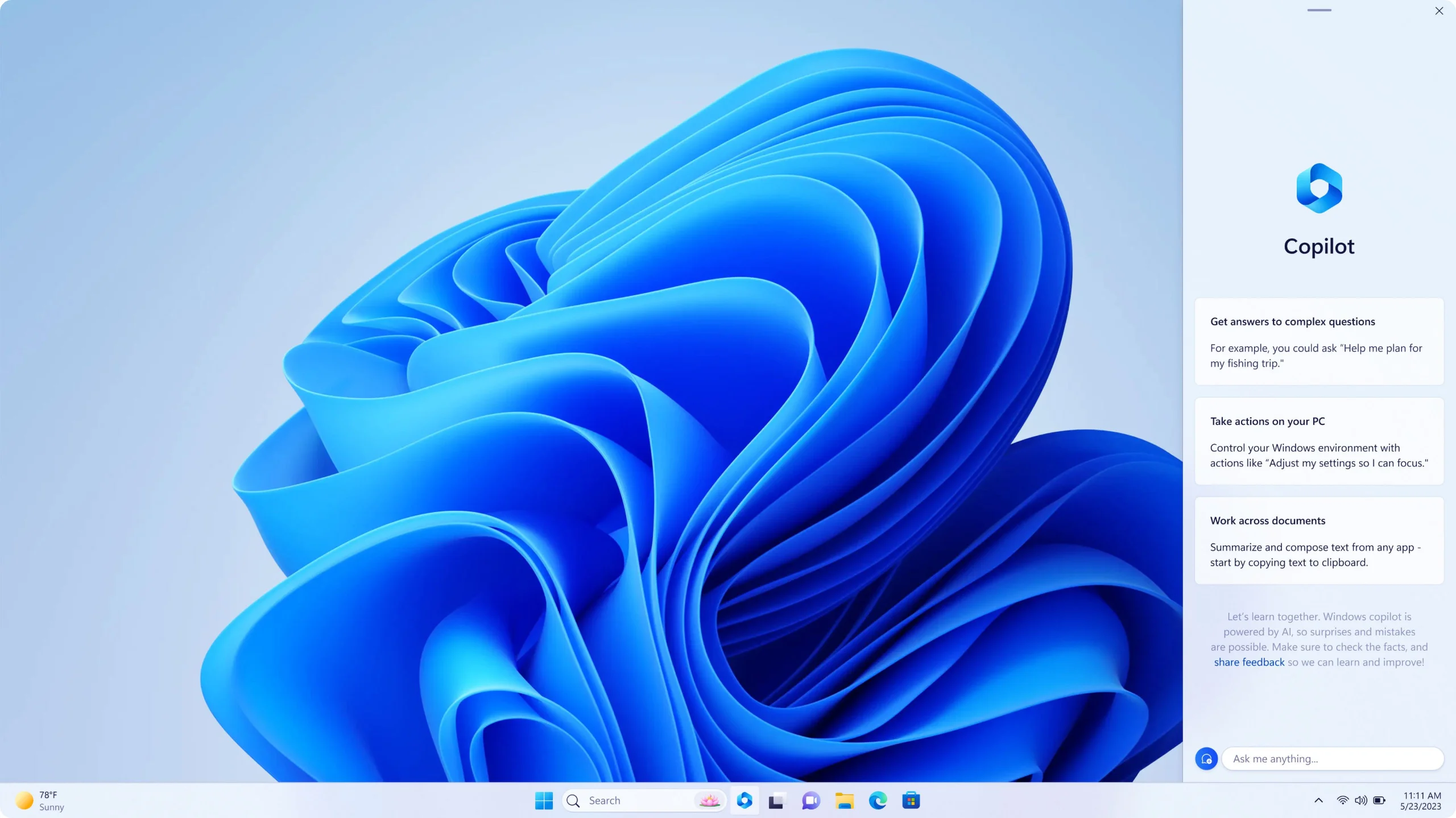

Windows 11 with AI & Multi-OS Compatibility
The GEEKOM Air12 Mini PC comes preinstalled with Windows 11, offering advanced AI-powered features like Copilot for a smarter, more efficient experience. Additionally, it is fully compatible with Linux, Ubuntu, and other operating systems, providing flexibility for developers, professionals, and tech enthusiasts.
Comprehensive Support for a Hassle-Free Experience
Local Shipping &
Free Delivery
Online Tech Support & FAQ
24/7 Customer Support
30-Day Return & Exchange Policy
3-Year Warranty
Trusted by Leading Media Worldwide
Award-Winning Excellence Across Our Product Line
Certified for Quality, Safety & Performance
Specifications
| Form Factor | 117 x 112 x 34.2 mm | |
| CPU | Intel Alder Lake N150(4 Cores, 4 Threads, 6MB Cache, up to 3.4 GHz) | |
| TDP 6W | ||
| Video Engine Processor | Intel UHD Graphics 12th | |
| Memory | One channel DDR5 SODIMM, 4800MT/s, up to 16GB | |
| Audio | HDA CODEC | |
| Storage | 1 x SSD (2280 M.2 SATA & PCIE Gen 3*4), 512G, up to 1TB | |
| I/O Port | 1 x USB 3.2 Gen 2 x 1 port(front panel) and 2 x USB 3.2 Gen 2 port(back panel) | |
| 1 x TYPE-C with DP 1.4 Alt Mode(back panel) and 1 x TYPE-C Data Only(front panel） | ||
| 1 x SD card reader | ||
| 1 x 3.5 mm headphone jack (front panel, support Apple HeadPhone) | ||
| 1 x RJ45(back panel) | ||
| 1 x HDMI 2.0(back panel) | ||
| 1 x Mini DP 1.4(back panel) | ||
| 1 x DC in(back panel) | ||
| 1 x PowerButton | ||
| 1 x Kensington Lock | ||
| Internal Connector | 1 x M.2 key-M slot(PCIe/SATA) | |
| 1 x FAN | ||
| 1 x RTC | ||
| 1 x USB2 | ||
| LED | 1 x POWER LED(Power On: Blue, S3: Flashing Orange) | |
| 1 x SATA SSD:Red PCIE SSD:Green | ||
| Ethernet | Intel® 10/100/1000 Mbps Ethernet | |
| LED | 10-100M: Flashing Orange, Green, 1000M: Flashing Orange, Green No light | |
| Wireless LAN | onboard WiFi6, BT5.2 AW-XM548NF | |
| Kensington Lock | Yes | |
| Battery | RTC coin battery | |
| Adapter | Automatics Voltage adjustment between 100 and 240V AC, 50/60Hz, 45Watts(19V/2.36A), 3Pin, 1.8 meters long & 65W(19V/3.42A) | |

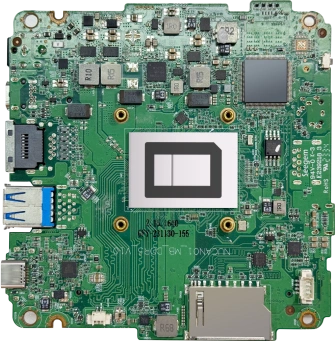

| PCBA Dimension | 109.1 x 107.63 mm | |
| Certification | CE, RoHS, FCC, CEC, CB, PSE, TELEC | |
| Operating system | Windows 11 21H2, PRO | |

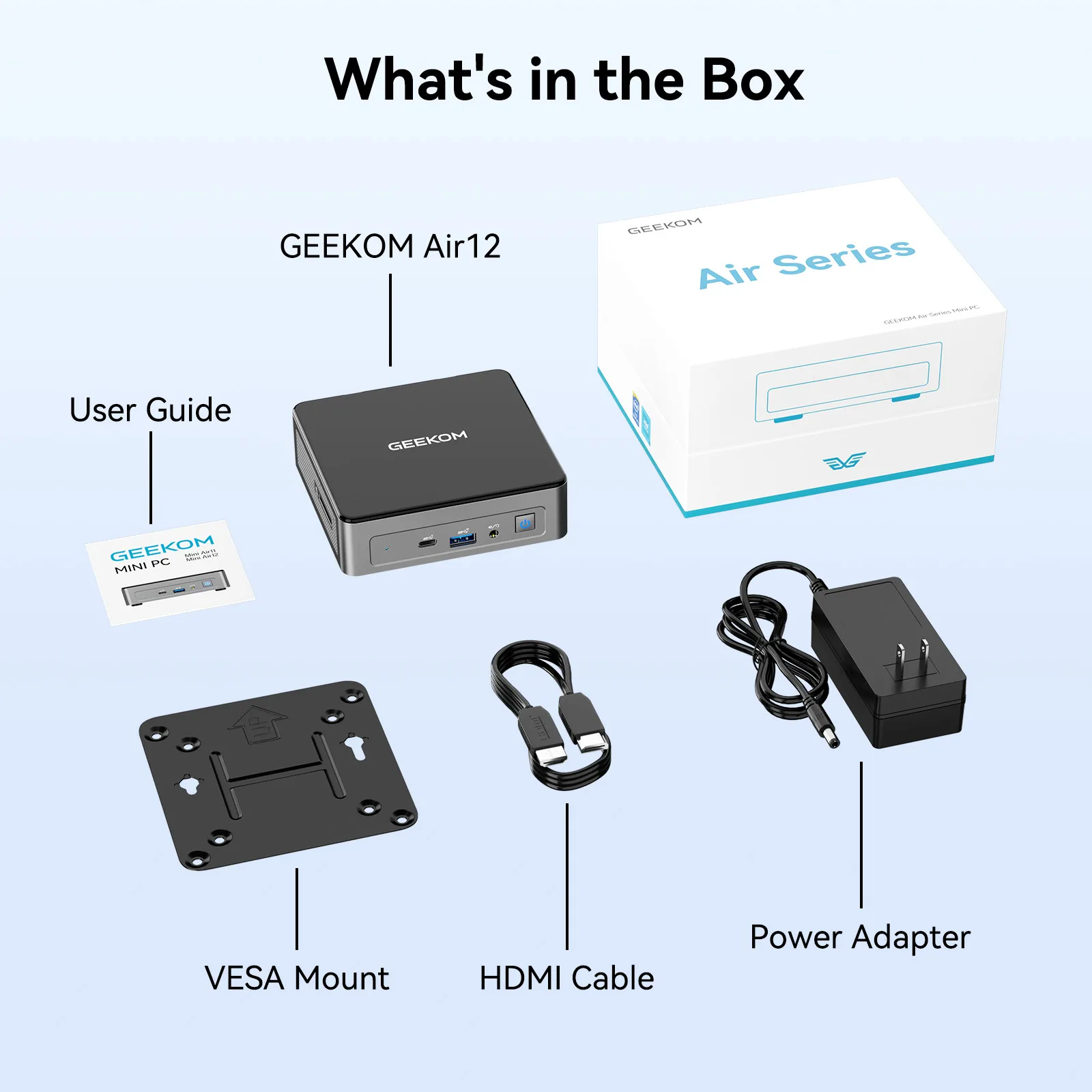

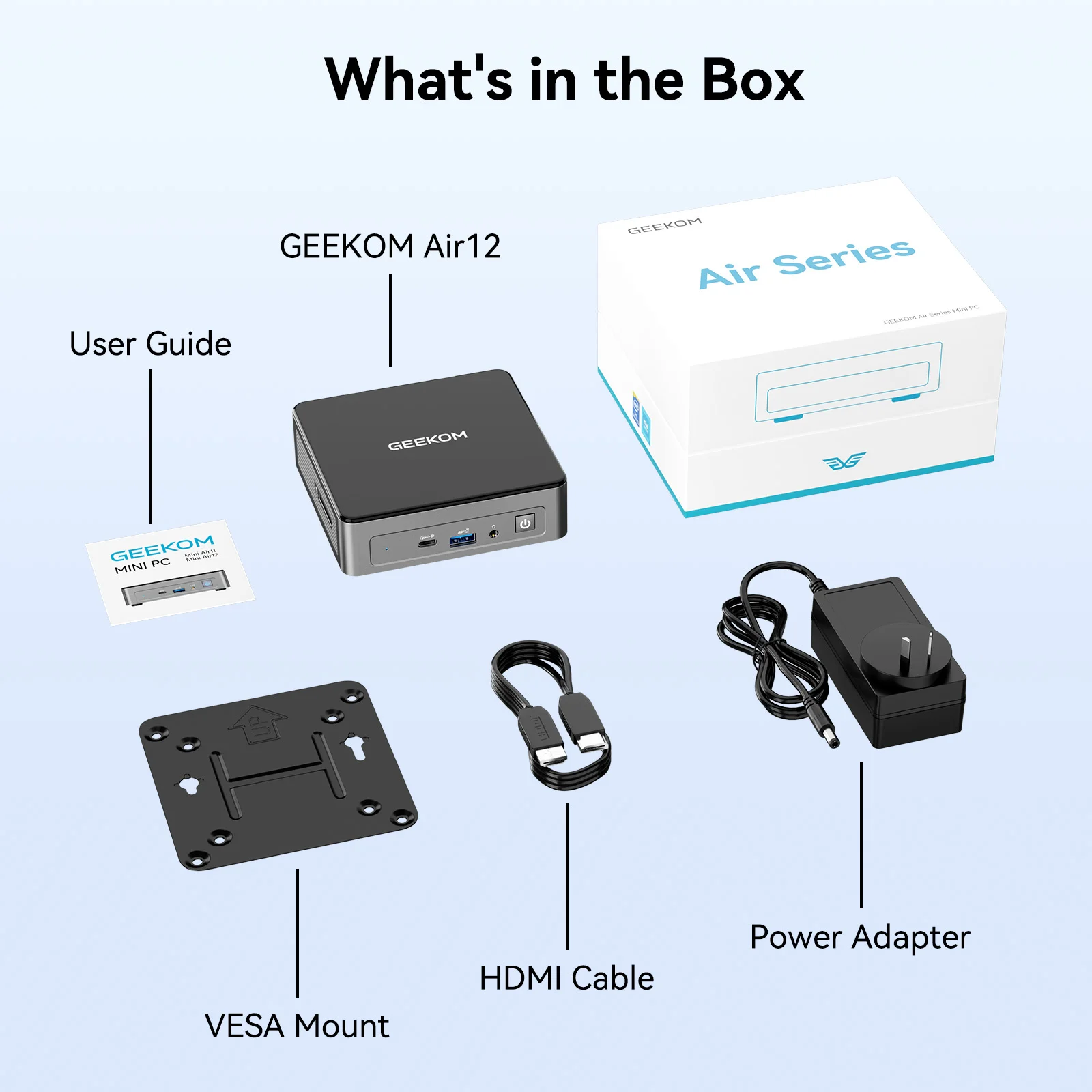

| Accessory | VESA Mount | |
